SIMOGEAR Tandem Geared Motors

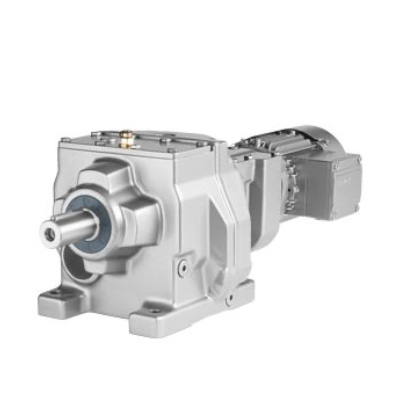

Highlighted Product Image

Features

  • Very high transmission ratios
  • Low speeds
  • Compact design

Mechanical construction

  • Stages: 4 to 6
  • Mounting types: foot-mounted or flange-mounted designs, housing flange, design with torque arm (according to the main gearboxes)
  • Shaft designs: solid shaft, hollow shaft, hollow shaft with splined shaft, hollow shaft with shrink disk, SIMOLOC assembly system (according to the main gearboxes)

Typical applications

  • Mixers
  • Kneading machines
  • Slow-running ventilators

Technical data

SIMOGEAR Tandem geared motors

Gear unit type D.29-Z19 … D.189-D69 (4- to 6-stages)
FZ.29-Z19 … FD.189-D69 (4- to 6-stages)
Gear unit sizes 12 (helical geared motors)
11 (parallel shaft geared motors)
10 (bevel geared motors)
5 (helical worm geared motors)
Torque range 140 … 19 000 Nm (helical geared motors)
150 … 19 000 Nm (parallel shaft geared motors)
220 … 19 500 Nm (bevel geared motors)
80 … 1 310 Nm (helical worm geared motors)
Range of transmission ratios 325 … 27 816 (helical geared motors)
274 … 29 900 (parallel shaft geared motors)
170 … 14 900 (bevel geared motors)
270 … 19 000 (helical worm geared motors)
Motor power range up to 7.5 kW
